User can configure both pass-through (maximum 6 rules) and port forwarding (maximum 6 rules) at the same time.
Go to "User" tab => Select User => Edit User => Account Setting => Pass-through setting
Pass-through should be configured before connecting vpn. This behavior is different from EasyAccess 2.0 windows application.
Once vpn is connected. Pass-through can not be edit anymore. (even other HMI is not connected yet)
We recommand to set all pass-through settings before connecting vpn.
Pass-through settings will be sync between different platforms. When you login same domain user, you do not need to configure same pass-through settings again.
Multiple pass-through on mobile platform can only support on Weintek P2P connection mode.
Use EasyBuilder Pro V6.05.01 or upper version. Re-download project to HMI to support display hmi information.
Please remember to download "Diagnostic tool" in iP/iE/XE/eMT/mTV series.
To diaplay project name, you also need to config "Domain Setting" => "Enable project name update" in account web.
After configuration complete. Project name will be displayed on both account web and EasyAccess 2.0 Application.
CPU usage, memory usage and disk usage can be found on EasyAccess 2.0 Application.
Project name only support "English"
Auto pass-through is default enabled on EasyAccess 2.0 version 2.10. Now become a setting option in windows platform.
Please be noticed the auto pass-through behavior can not be disabled on mobile platform since pass-though can not be edited after connecting vpn on mobile platform.

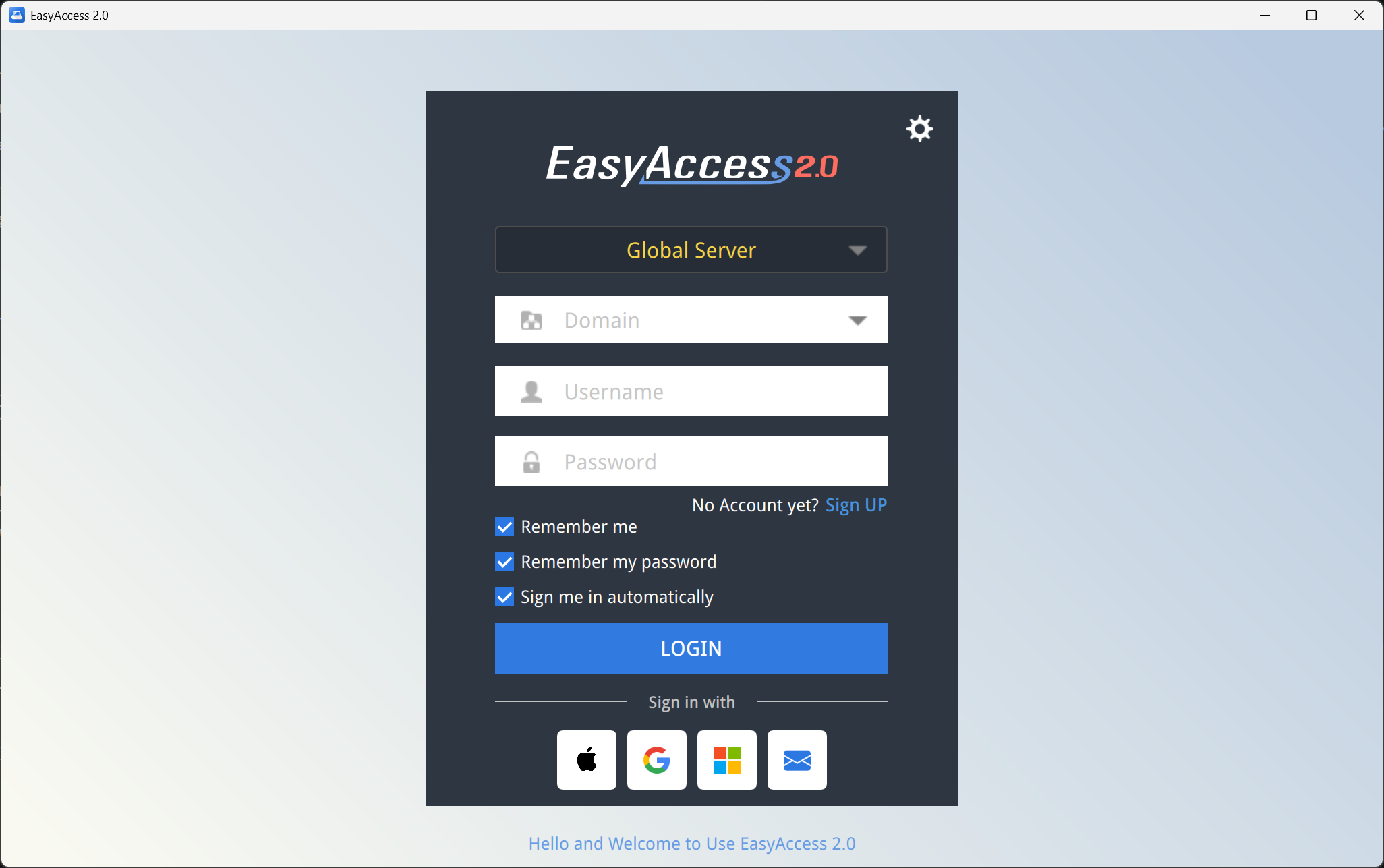

Click "Sign UP" on the bottom to register new domain account.
Enter "Domain name", "Admin email" and "Admin password" to register new domain account. Be sure to read "Terms of service" and "Privacy Policy" first.
Check you register email. You will receive an email "EasyAccess 2.0 Domain Registration Confirmation".
Please enter "confirm code" in EasyAccess 2.0 application or click the "complete E-mail registration confirmation" link in your email to complete domain registration.
If you didn't receive any email. Try "Resend email" or contact our customer support service.
After complete domin registration. EasyAccess 2.0 application will auto login your account.
When you login as domain admin. You can find a "plus button" on lower right corner

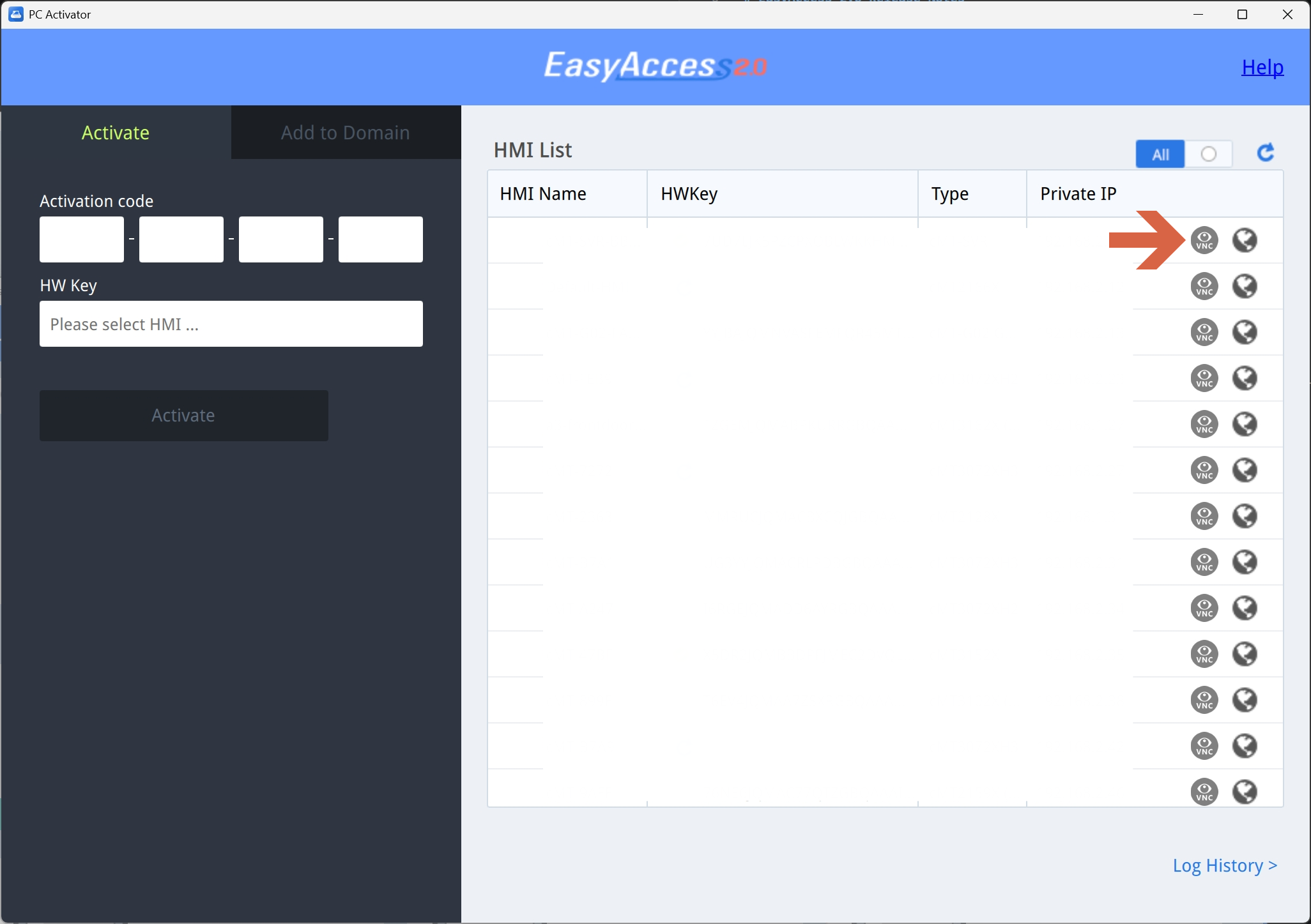

Click to launch a dialog to search HMIs on your LAN environment.
You can activate HMI by activation card or add activated HMI to current login domain.
Please be noticed that EasyAccess 2.0 mobile application also support this feature. Be sure to connect your mobile network to local wifi environment to find those HMIs under your local environment.
When you login as domain admin. You can naming you HMI by setting "HMI Nickname" in both EasyAccess 2.0 Application or Account web. HMI Nickname can support multi-languages.
After modification. You can see those nicknames on EasyAccess 2.0 Application, Account web or push notification content.
EasyAccess 2.0 windows application will keep your HMI pass-through history and add those pass-through automatically when connect to HMI successfully.
If you use realvnc viewer (Android, Apple) as you vnc viewer in EasyAccess 2.0 mobile application, click "launch vnc viewer" button will pass current vpn ip to realvnc viewer (Android, Apple) directly. You do not need to type vpn ip manually.
We also provide EasyAccess 2.0 linux version. You can download it from our account server https://account.ihmi.net or https://www.easyaccess.cn
A: Latest Android RealVnc Viewer support new method to directly pass ip & port to open (So do not need to enter vpn ip 10.7.X.X manually anymore). But the method can only be used on latest version. Please upgrade latest RealVnc Viewer to enjoy this new feature.
A: Please install latest EasyAcess 2.0 windows version to fix this problem. You cam find it in https://account.ihmi.net/domain/index.php
This function is controlled by domain admin. Configure in account web. When this function is enabled, all domain users can use this functionality (also need to upgrade app version to 2.9 or upper)
When HMI is already connected by other user. You can still connect the same HMI and see all connected users by click Occupied (N) hint.
Noboby connect the HMI.
Someboby connect the HMI. (You can still connect it.)
HMI is connected by multiple users.
When try to connect to one HMI that has already been connected. A Warning will pop up.
To avoid the warning message pop up. You can disable the related setting on Settings page.
Add users to receive activity report at the same schedule. (User can only see HMIs with privilege in their activity report.)
Scan QRCode on EasyAccess 2.0 page in HMI system setting or project to start configure push notification to social media accounts (Facebook, Line, WeChat)
To configure QRCode in EasyBuilder Pro, select Object => Barcodes => WeChat Barcode Display
After scan QRCode via your mobile phone. Click to subscribe push notification to your social media account
Send Message to Facebook fans page, follow instructions and receivce push notification from HMI
Click 'HMI list' in Facebook Messenger to configure HMI settings
Select chat (chat room or one by one chat) to receive HMI push notification
If you select chat room at previous step. To receive HMI push notification, please remember to add 'Line Notify' to the chat room
After subscription success. You will receive HMI push notification from Line Notify
Notification settings can be edited via link in message
Use "Scan" in WeChat to scan QRCode
"Follow" public account "EasyAccess V2" to receive HMI push notification
Click "Manage" to manage HMI
Domain admin can manage these relationships in Notification tab (https://account.ihmi.net/domain/Default.php)
We are proud to announce that EasyAccess 2.0 service has passed security assessment and proven to be safe.
A third-party security firm has verified and checked our EasyAccess 2.0.
We also broadly reviewed the security of EasyAccess 2.0 and enhanced several minor risks.
To see more details, go to Security Certificate.
(a) On the list of HMI, click on the “Pass-through” icon which appears below the IP address when connection in active.
(b) Enter the IP address of the target PLC. Support up to 6 IP addresses.
(a) In domain management web page (https://account.ihmi.net/domain), under the “Devices” tab, click “HMI Folder View”. HMI can be managed easily by creating your own folder/category. In this page, the Domain Admin can: Add/Edit/Delete folders, or Move hmi/folder to another folder. For domains with a large number of HMIs, search tool is also available.
List of Folders and HMIs
Icon | Function |
The Domain Admin can create a new folder in this domain.
|
|
Current folder levels is displayed above the table. Click folder name to go to a different level of folder. |
|
Operation toolbar will be shown via selecting folder.
Edit Edit foder name. Delete Delete selected folders. Move Move folders or HMIs to specific folder. Multiple selection Move to folder |
|
Search for a folder or HMI. |
(b) The folder structure also displayed on EasyAccess 2.0 Application
Folder Structure on EasyAccess 2.0 (Windows)
Folder Structure on EasyAccess 2.0 (Mobile)
Click user icon to select Activity report operation. Subscribe the report and select schedule. The report will be sent to domain admin email according to schedule (Daily, Weekly, Monthly). You can also send test report to see if it works by clicking 'Send a copy now (1d.)'.
In domain page, under the “Wechat” tab, click “Wechat Users” to manage HMIs according to wechat account. click “HMI Management” to management wechat account according to HMI
Wechat Users Management
HMI Management
You may enter FTP password beforehand and copy the FTP URL when you long press, right click on the VPN IP, or click the copy button next to 'Password in FTP URL'
